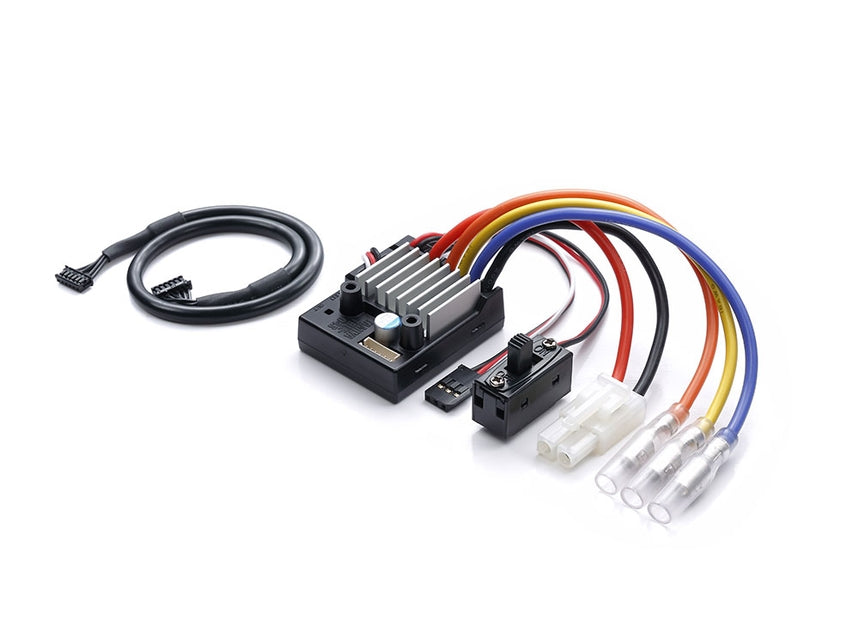

Tamiya RC System 45069 TBLE-04S Sensored Brushless Electronic Speed Controller

$99.90 AUD
$99.90 AUD
Sale Sold out
Shipping calculated at checkout.

This ESC is designed for use with Tamiya Brushless Motors (Sensored) 15.5T and over, (Aftermarket brands 21.5 and over), and also brushed motors 25T and over. High point, neutral brake and brake settings are individually adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is shown by an LED, and the ESC also features two protection functions. ★Maximum continuous current: 75A ★Input voltage: 6.6V - 7.2V ★Dimensions: 41.5mm x 33.4mm x 18mm ★Weight: 45g (including cables)

• Sensored brushless ESC detects motor rotor positions with precision, enabling more efficient power supply and smoother motor response.
• Compatible with Tamiya brushless motors (sensored) of 21.5+ turns, and Tamiya brushed motors 25 turns and over.
• Choose from 10 different settings for both neutral brake and brake, to get your setup just how you want it.
• Features overheating and overload protection functions to help ensure that your equipment avoids damage.
• Weight: 47g (including cables)
• Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.
• Dimensions: 41.5 x 33.4 x 18mm

LO/HI Battery Cut-off Information:
LOW & HIGH Battery Low Voltage Protection Feature: LOW battery setting cuts off @ 5.6 volts approximately. (Best for Ni-CD, NI-MH and Li-FE battery chemistry) HIGH battery setting cuts off @ 6.2 volts approximately. (Best for other battery chemistries)
